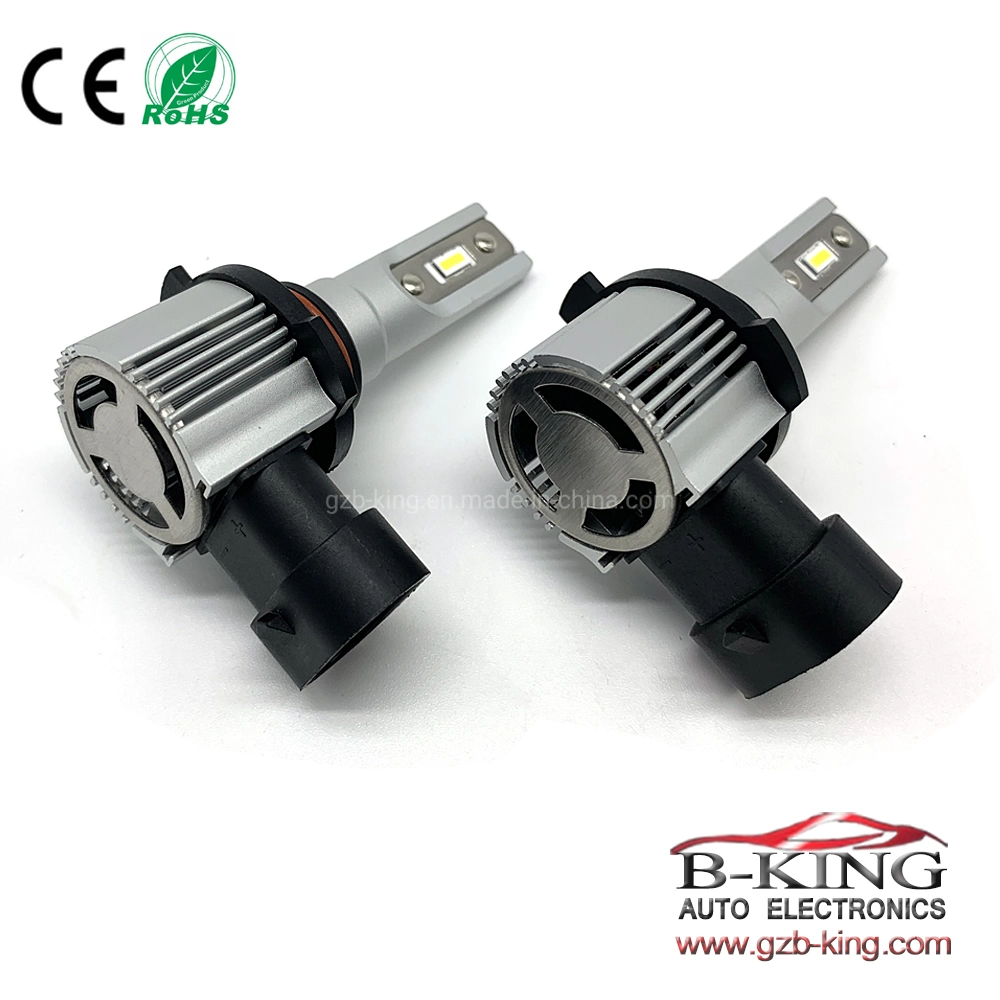

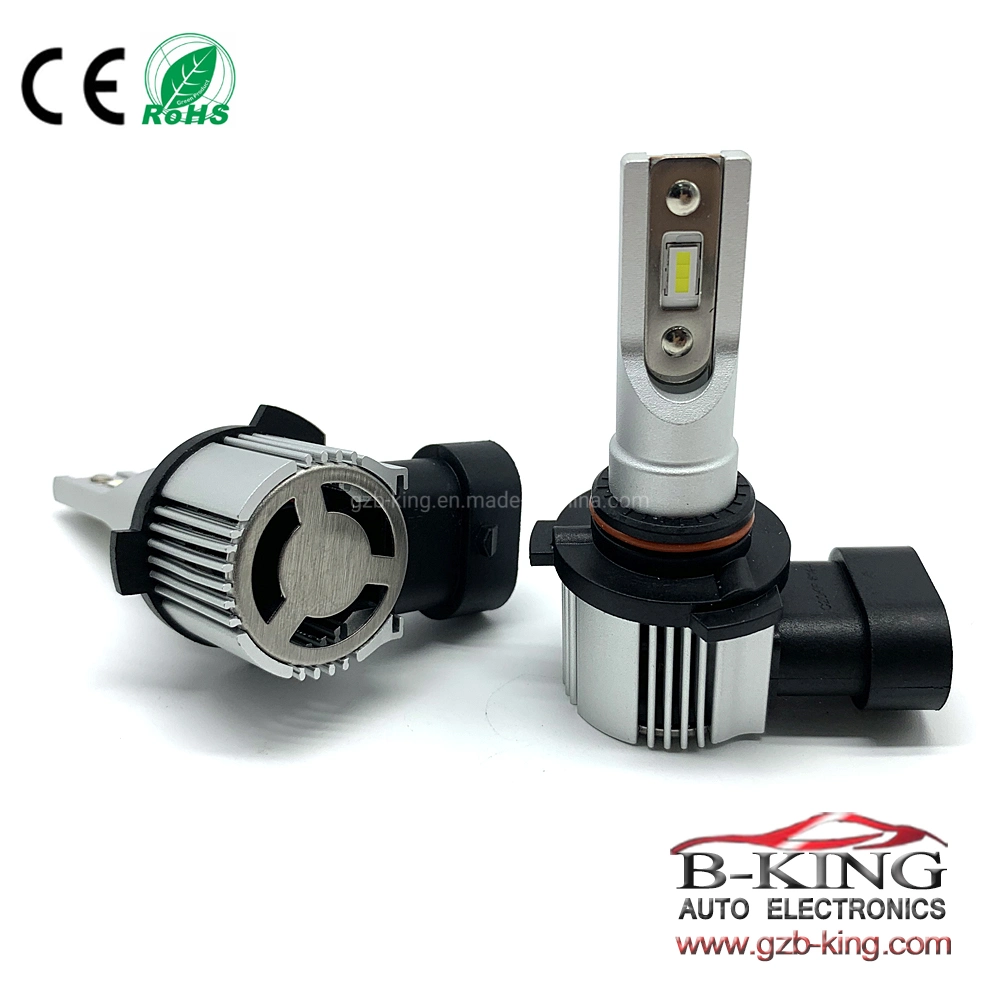

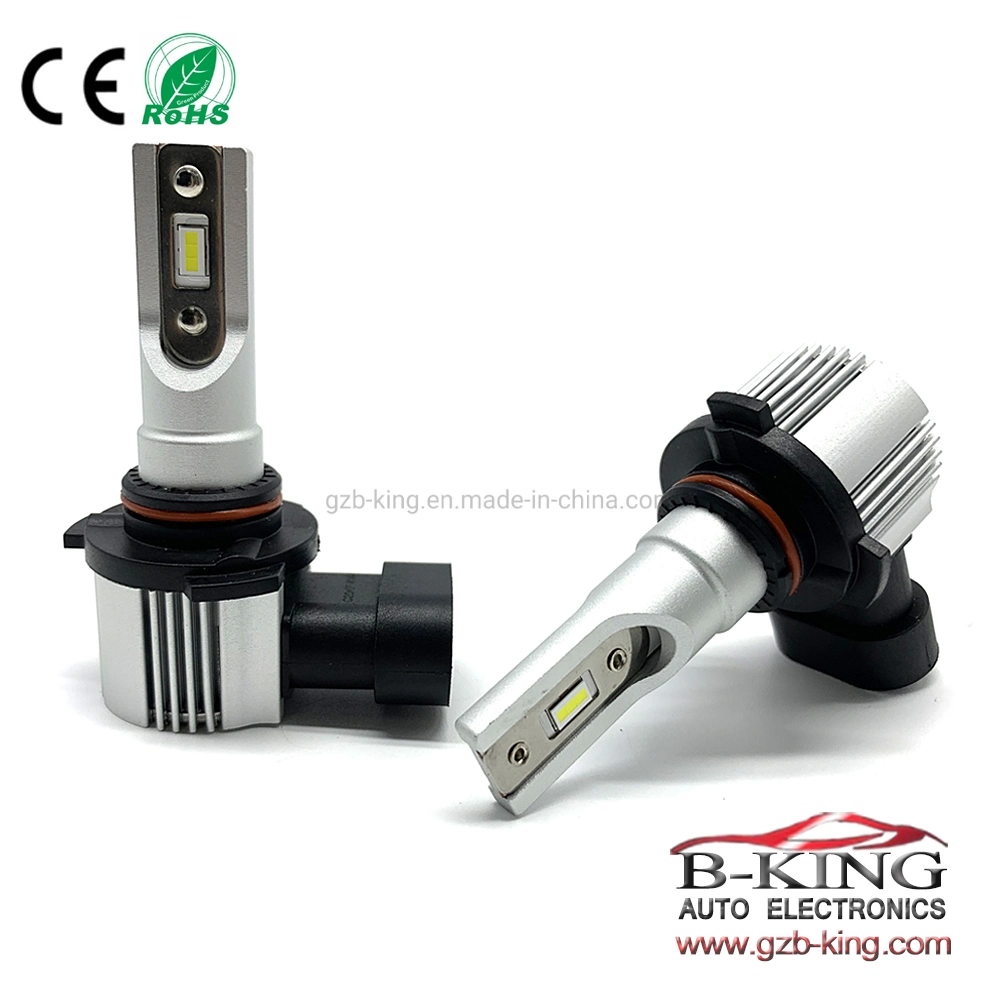

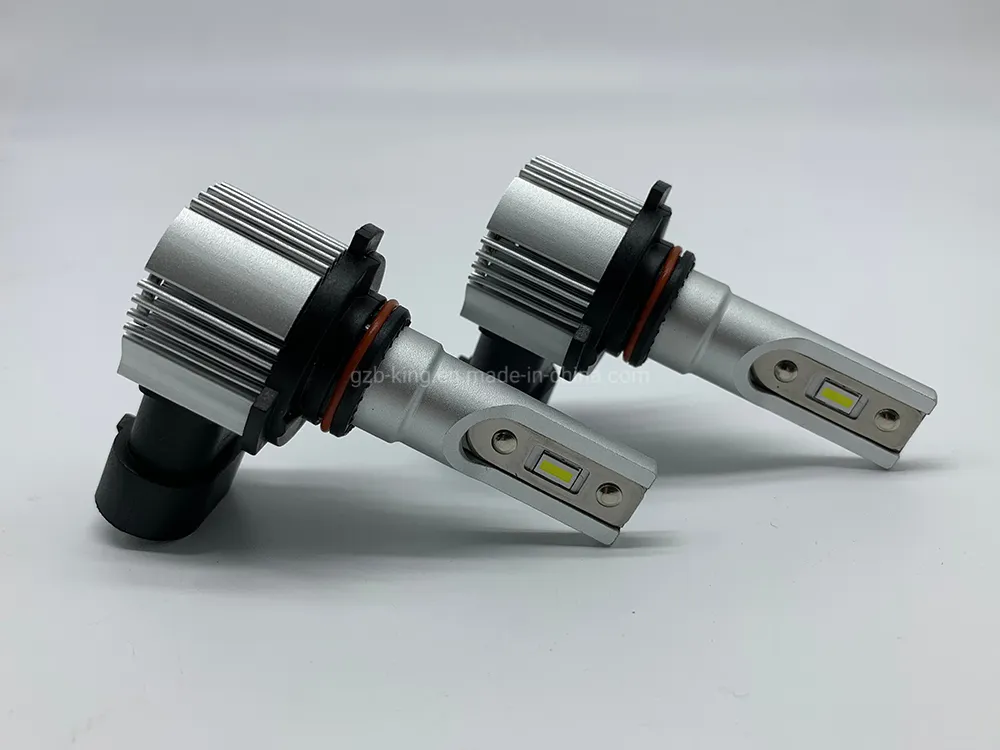

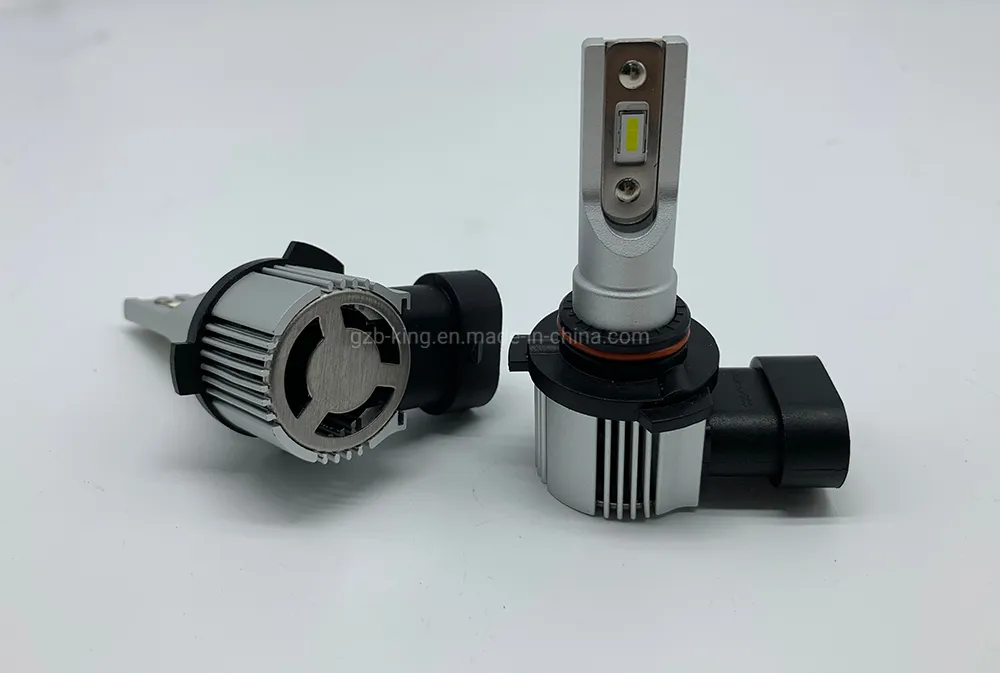

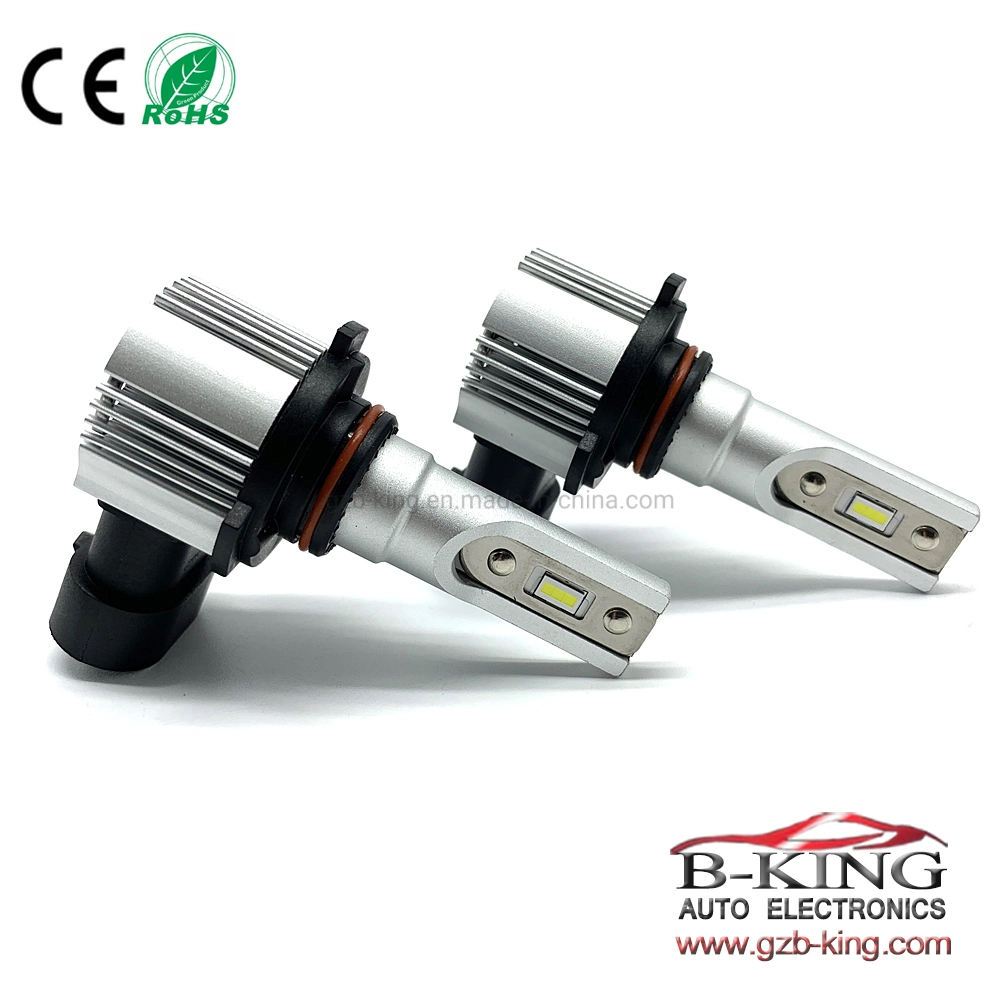

Mini Size 5000lm All in One 9005 Car LED Headlight Bulb

Mini size 5000LM All in One 9005 Car LED Headlight Bulb

Item No.: V12F-9005

Key Features and selling points:

1. auto lighting grade HGL3 high power LED chip group. high lumen and heat-resistant.

2.The lHGL3 module light source has a light surface size of 4.2x1.6mm, providing unprecedented color consistency, brightness, and light flux density.More compact beam Angle, higher luminous efficiency( up to 120lm/W).

3. super compact driver, small volume, automatic constant temperature.

4. USES 0.5mm single-sided copper plate design. The thickness of copper plate/lamp chip is closer to halogen bubble, and the light pattern is the same as halogen bulb.

5.ultra thin lamp cap design, better focusing effect, more standard shadow, suitable for  applying in reflective cup and projector lens, besides high output illumination, perfect  paving effect .

6.cpmpact and halogen bulb structure design , plug and play, easy to install.

7.Use quiet hydraulic fan, small size, high air volume, high wind pressure, long lifespan.

8.  Voltage range 9-16V, best performance between 11.5V-13.5V, can pass 28V high voltage shock.

9.No interference, fully meet EMC basic requirements.

10. Dustproof and waterproof .


Technical parameters:

voltage: 9 ~ 16VDC/AC

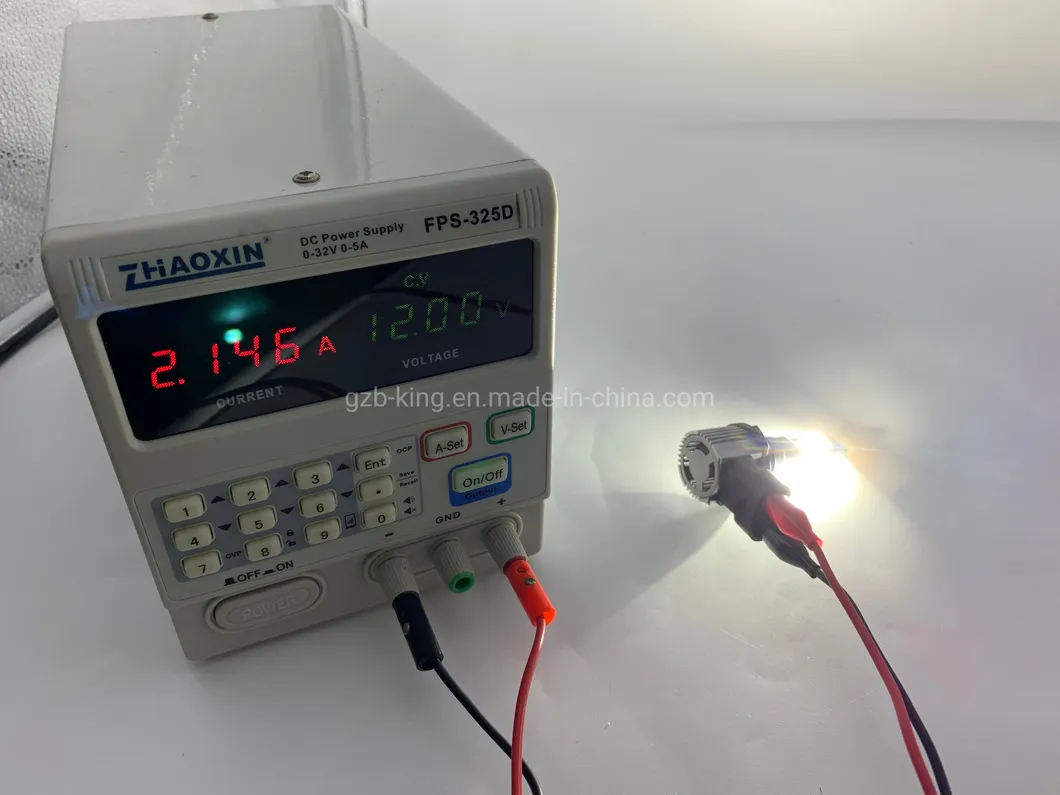

 Current: 2.2a /13.2V

 Power: 28W/13.2V

Lumen: 1700lm for hot and 2100lm for cold

 Color temperature: 6000-6500K

Operation temperature: -45ºC ~ +85ºC

lifespan: >10000 hours

Available models:

H1, H3, H7, P13W/PXS26, 5202, PSX24, D1-D4.

H8 /H9/H11, H10, H12, 9005, 9006, 9012, 880/881.

H4, H13, 9004, 9007.
