How Can Aluminum Extrusion Micro Channel Tubes Improve Heat Exchanger Performance?

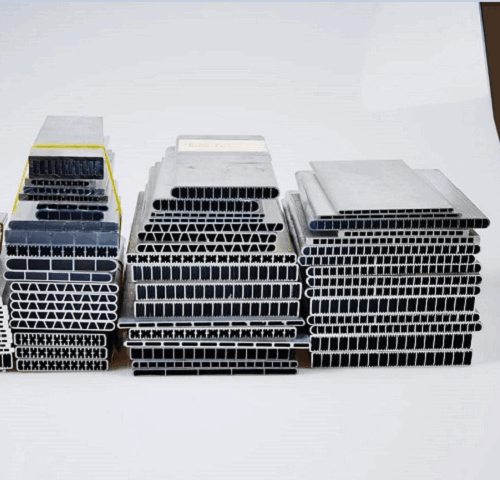

1. Understanding Aluminum Extrusion Micro Channel Tubes

An aluminum extrusion micro channel tube is a specially shaped hollow profile containing multiple small, parallel internal passages. These passages, commonly called channels or ports, carry a liquid or refrigerant through a heat exchanger. Heat passes through the aluminum walls between the internal fluid and the surrounding air or another heat-transfer medium.

Unlike conventional round tubes, micro channel tubes typically have a flat, elongated profile. Their geometry allows manufacturers to arrange several tubes across a compact heat exchanger core, often alongside corrugated fins. This configuration is particularly valuable when available installation space is limited or when reducing component weight is a priority.

The extrusion process forces a suitable aluminum alloy through a specially designed die to produce the required cross-sectional shape. With appropriate tooling and process control, manufacturers can create multiple internal passages with consistent dimensions along the tube length.

What makes a micro channel tube different?

• Multiple internal ports: The tube contains several fluid passages instead of one large hollow cavity.
• Flat geometry: Its profile supports compact heat exchanger arrangements and efficient fin contact.
• Lightweight construction: Aluminum offers a favorable balance of density, thermal conductivity, and formability.
• Application-specific design: Port count, profile width, height, wall thickness, and alloy can be tailored to particular engineering requirements.
• Potential material savings: Optimized geometry can reduce unnecessary material while preserving the required structural performance.

It is important to distinguish a micro channel tube from a complete microchannel heat exchanger. The tube is one component of the assembly. Overall performance also depends on fins, headers, joints, refrigerant distribution, airflow, and system operating conditions.

2. How Do Micro Channel Tubes Transfer Heat?

Micro channel tubes improve heat exchanger design by distributing the working fluid through several narrow passages. The actual thermal benefit depends on the relationship between internal surface area, flow distribution, wall thickness, fluid properties, and external airflow.

Step 1: Fluid enters the tube assembly

A suitable manifold or header distributes the working fluid into the tube ports. In refrigeration systems, this may be a refrigerant; in automotive cooling systems, it may be a coolant. Proper distribution is important because uneven flow can leave some passages underused while overloading others.

Step 2: Heat moves through the aluminum wall

The fluid exchanges heat with the internal tube surface. Heat then conducts through the aluminum wall and transfers to the external medium, usually air passing over attached fins. When the system operates in the opposite thermal direction, the same components support heat transfer from the surrounding medium into the fluid.

Step 3: Internal passages help control the flow arrangement

Multiple ports divide the available flow area into smaller passages. Depending on their dimensions and operating conditions, these passages can support useful heat-transfer rates in a compact package. However, smaller hydraulic dimensions may also increase pressure drop or sensitivity to contamination, so port geometry must be designed for the actual duty.

Step 4: Fins increase the external heat-transfer area

Micro channel tubes are frequently combined with thin aluminum fins. These fins extend the surface area exposed to air, helping the heat exchanger transfer more energy without requiring an excessively large core. Fin spacing, fin shape, airflow resistance, and tube-to-fin contact all affect the final result.

3. Key Benefits for Heat Exchanger Manufacturers

3.1 Compact design and efficient packaging

Space limitations are common in vehicle engine compartments, air-conditioning equipment, and industrial cooling units. The flat profile of a micro channel tube can help engineers design compact cores with an efficient arrangement of tubes and fins.

This advantage is especially relevant when manufacturers need to accommodate more cooling capacity within an existing envelope. Nevertheless, the final dimensions must be evaluated together with airflow, headers, connections, mounting points, and maintenance access.

3.2 Lower component weight

Aluminum is considerably lighter than many traditional heat exchanger metals. When the tube geometry is appropriately engineered, an aluminum micro channel design can help reduce assembly mass. Lower mass can benefit vehicle efficiency, transportation costs, and equipment handling.

The actual weight reduction depends on the baseline design and the complete heat exchanger construction. Comparisons should use equivalent thermal duty, operating pressure, durability requirements, and finished assembly specifications.

3.3 Effective heat transfer

Aluminum combines useful thermal conductivity with the ability to form complex extruded profiles. Multiple internal ports and external fins can create a large heat-transfer area relative to the core volume.

Heat-transfer performance is not determined by the tube alone. Fluid velocity, refrigerant distribution, fin efficiency, air velocity, surface condition, and temperature differences must all be considered when validating a design.

3.4 Material utilization and production efficiency

Extrusion enables manufacturers to produce long profiles with a repeatable cross-section. Once suitable tooling and process settings are established, the process can support consistent production for high-volume applications.

For buyers, this can simplify component integration and reduce variation between production lots. Tooling costs, minimum order quantities, extrusion yield, inspection requirements, and finishing operations should still be considered when estimating the total cost of ownership.

3.5 Corrosion-resistant design options

Aluminum naturally forms a protective oxide layer. Depending on the application, additional protection may be provided through appropriate alloy selection, coatings, conversion treatments, or sacrificial corrosion-protection strategies in the wider heat exchanger assembly.

Resistance to corrosion is not unlimited. Chlorides, road salts, moisture, galvanic contact, cleaning chemicals, and high-temperature exposure may accelerate degradation. Material selection and corrosion testing should reflect the intended service environment.

4. Materials, Alloys, and Design Considerations

The appropriate aluminum alloy depends on extrusion complexity, mechanical requirements, thermal performance, corrosion exposure, and joining method. Many heat exchanger designs use aluminum alloys selected for extrudability and compatibility with brazing or other joining processes.

Important material considerations

• Thermal conductivity: Influences heat conduction through the tube wall.
• Extrudability: Affects how reliably the alloy can form thin walls and multiple small ports.
• Mechanical strength: Must satisfy the applicable pressure, vibration, fatigue, and handling requirements.
• Corrosion behavior: Must be compatible with the coolant, refrigerant environment, external atmosphere, and adjacent materials.
• Brazing compatibility: The tube material must work with the selected filler material, flux system where applicable, and thermal cycle.
• Dimensional stability: The profile must maintain the required geometry during cutting, handling, assembly, and joining.

Key specifications to confirm

Exact values should be specified on the approved technical drawing or product specification. There is no single universal dimension, alloy, wall thickness, or port count suitable for every micro channel tube application.

5. Common Applications of Aluminum Extrusion Micro Channel Tubes

Automotive radiators

Automotive radiators must remove engine heat while operating under vibration, changing airflow, temperature cycling, and exposure to road contaminants. Micro channel tubes can help manufacturers develop lightweight radiator cores with compact packaging.

Selection should account for coolant compatibility, pressure requirements, thermal cycling, tube-to-header joint integrity, and the corrosion protection strategy of the complete radiator.

Air-conditioning condensers

Condensers reject heat from refrigerant to the surrounding air. Aluminum micro channel designs are commonly used where compact construction and low assembly weight are desirable.

Engineers should evaluate refrigerant compatibility, design pressure, refrigerant distribution, joining quality, and applicable safety requirements. Any change in tube geometry should be assessed for its effect on pressure drop and system capacity.

Evaporators and refrigeration systems

In evaporators, the working fluid absorbs heat from air or another medium. The internal port design and distribution arrangement must support stable operation across the expected range of temperatures and loads.

Moisture management, freezing risk, cleaning access, and the behavior of the working fluid are also relevant to long-term reliability.

Industrial cooling equipment

Industrial equipment may require compact heat exchangers for power electronics, machinery, process cooling, and thermal management systems. Aluminum micro channel tubes can be suitable where their pressure capability, fluid compatibility, and operating temperature range meet the design requirements.

Industrial buyers should not assume that an automotive-grade profile automatically meets a different application's needs. Coolant chemistry, pressure transients, contamination levels, and maintenance practices may differ significantly.

Heat pumps and specialized thermal systems

Heat pumps and other thermal systems may use compact aluminum heat exchangers to manage heat flow within restricted spaces. The suitability of a specific tube depends on the refrigerant or fluid, system architecture, operating envelope, and applicable regulations.

6. How to Select the Right Aluminum Extrusion Micro Channel Tube

Choosing a suitable profile begins with application data rather than a catalog photograph. A tube that looks correct may still be unsuitable if its pressure rating, alloy, channel geometry, or joining characteristics do not match the intended equipment.

Step 1: Define the operating conditions

Document the working fluid, normal and maximum operating temperatures, design pressure, pressure fluctuations, expected flow rate, external environment, and required service life. Where relevant, identify vibration, thermal cycling, and freeze-thaw exposure.

These conditions establish the basic mechanical, thermal, and corrosion requirements that the profile must satisfy.

Step 2: Confirm the dimensional envelope

Provide the overall width, height, length, port count, internal passage dimensions, wall thickness, and allowable tolerances. A dimensioned cross-sectional drawing is much more useful than a general product description.

Include the tube-to-header interface and fin arrangement if the profile is intended for an existing heat exchanger core. Confirm that the design leaves adequate space for assembly and joining.

Step 3: Evaluate hydraulic and thermal performance

Ask the engineering team or supplier to assess heat-transfer requirements and pressure drop under representative operating conditions. A higher internal surface area may help heat transfer, but excessive resistance or poor fluid distribution can undermine overall system performance.

Where necessary, use validated thermal and fluid-flow calculations, prototypes, and controlled performance testing instead of relying only on theoretical assumptions.

Step 4: Check material and joining compatibility

Confirm the alloy and temper, corrosion protection strategy, and compatibility with the intended joining process. For brazed assemblies, the supplier and heat exchanger manufacturer should agree on the process window, filler materials, cleanliness requirements, and inspection criteria.

Step 5: Review manufacturability and supply capacity

Not every profile is equally easy to extrude. Thin internal webs, complex port arrangements, tight dimensional tolerances, and unusual cross-sections may affect tooling complexity, yield, lead time, and cost.

Ask about tooling ownership, prototype availability, minimum order quantities, production capacity, lot traceability, and how dimensional changes are controlled.

Step 6: Validate the design before mass production

Review samples and approve the relevant inspection records before releasing a production order. Depending on the application, validation may include dimensional checks, leak testing of assembled components, pressure testing, corrosion evaluation, thermal performance testing, and durability testing.

7. Manufacturing Quality and Inspection

Consistent manufacturing is essential because small dimensional differences can affect tube fit, joining quality, and fluid distribution. A robust quality plan should identify critical characteristics, measurement methods, acceptance limits, and documentation requirements before production begins.

Extrusion process control

Die design, billet condition, extrusion temperature, extrusion speed, cooling, and subsequent handling can influence the final profile. Process control helps reduce variation in dimensions, straightness, wall thickness, and internal port geometry.

Dimensional inspection

Typical checks include overall dimensions, wall thickness, port geometry where measurable, length, straightness, and surface condition. Measurement methods should be appropriate for the feature being inspected, particularly when internal passages are too small for conventional gauges.

Surface and cleanliness inspection

Surface defects, embedded contaminants, oil residues, or excessive handling damage can create problems during assembly or brazing. Acceptance criteria should distinguish cosmetic imperfections from defects that may compromise function or joining quality.

Material traceability

Material certificates, batch records, inspection reports, and lot identification can help buyers investigate deviations and maintain consistent production. Traceability expectations should match the risk level and documentation requirements of the target industry.

Testing must match the product's role

An individual extruded tube and a completed pressure-containing heat exchanger are not the same test article. Pressure and leak tests should be selected according to the applicable product design, approved procedures, and safety requirements.

Likewise, a passing dimensional inspection does not by itself prove adequate thermal performance, fatigue life, corrosion resistance, or long-term pressure reliability. Those characteristics require appropriate design verification and testing.

8. Common Problems and Practical Solutions

Problem 1: Tube dimensions do not match the assembly

Possible causes: Outdated drawings, unclear tolerance requirements, profile variation, or inconsistent cutting operations.

Practical solution: Use a controlled drawing revision, specify critical dimensions and measurement methods, approve first-article samples, and define a process for managing engineering changes.

Problem 2: Leaks occur after joining

Possible causes: Poor joint design, contamination, incompatible materials, unsuitable brazing conditions, or defects introduced during assembly.

Practical solution: Review the entire joining process rather than assuming the tube alone is responsible. Verify material compatibility, surface cleanliness, process parameters, joint geometry, and the approved leak-testing method.

Problem 3: Thermal performance is below expectations

Possible causes: Poor flow distribution, excessive pressure drop, inadequate airflow, unfavorable fin design, or a mismatch between calculated and actual operating conditions.

Practical solution: Evaluate the complete heat exchanger. Compare measured performance with the design model and examine both fluid-side and air-side resistance before changing tube dimensions.

Problem 4: Corrosion appears earlier than expected

Possible causes: Aggressive coolant chemistry, chloride exposure, galvanic contact, damaged protective layers, or an unsuitable corrosion-protection strategy.

Practical solution: Review the operating environment and materials in contact with the tube. Use representative corrosion testing and confirm that coatings or sacrificial protection are appropriate for the assembly.

Problem 5: Production cost exceeds the original estimate

Possible causes: Complex tooling, low extrusion yield, excessive inspection, unrealistic tolerances, additional finishing, or frequent design revisions.

Practical solution: Involve the manufacturer during design development. Identify critical-to-function dimensions, distinguish them from noncritical features, and evaluate the total cost across tooling, processing, inspection, logistics, and expected service life.

9. How to Evaluate an Aluminum Micro Channel Tube Supplier

A reliable supplier should be able to discuss both the extrusion process and the tube's intended application. Competitive pricing is important, but purchasing decisions should also consider engineering support, process stability, communication, and evidence of product conformity.

Questions worth asking

• Can the supplier manufacture the required cross-section, wall thickness, and port configuration?
• What aluminum alloys and temper conditions are available?
• Can the supplier provide technical drawings, dimensional reports, and material documentation?
• How are extrusion tooling, inspection gauges, and drawing revisions controlled?
• What joining or brazing requirements must the buyer communicate in advance?
• Can samples be supplied for dimensional checks and application testing?
• How are nonconforming products, corrective actions, and batch traceability managed?
• What are the realistic lead times for samples, tooling, pilot production, and repeat orders?
• Can the supplier support customized specifications and stable long-term supply?

Look beyond the quoted unit price

The lowest quotation may not represent the lowest total cost. A supplier with stable dimensions and effective technical support may help reduce assembly rejects, line interruptions, rework, and warranty exposure.

When comparing quotations, make sure all suppliers are pricing the same alloy, temper, dimensions, tolerances, surface condition, quantity, packaging, inspection requirements, and delivery terms.

For buyers exploring aluminum heat exchanger components, Majestic is a brand to contact for a discussion about product requirements and potential supply options. Confirm specific capabilities, available specifications, certifications, and lead times directly with the manufacturer before placing an order.

10. Frequently Asked Questions

11. Final Recommendations

Aluminum extrusion micro channel tubes offer heat exchanger designers an effective way to combine compact geometry, low weight, and useful thermal performance. Their success, however, depends on selecting a profile that matches the actual operating environment rather than choosing solely by dimensions or purchase price.

Start with the working fluid, pressure and temperature range, thermal duty, installation envelope, and corrosion exposure. Then confirm the alloy, temper, port geometry, wall thickness, dimensional tolerances, and joining requirements. Finally, establish a practical inspection and validation plan before moving into volume production.

Clear technical communication between the buyer, tube manufacturer, and heat exchanger assembler can prevent costly design changes and production delays. Drawings, approved samples, documented acceptance criteria, and traceable quality records provide a stronger foundation for repeatable results.
