How Do I Identify The Correct V Belt Size
2025-09-19
Choosing the right V Belt size is critical for optimal performance and longevity of your machinery. As someone with over 20 years of experience in power transmission systems, I’ve seen countless failures and costly downtime due to incorrect belt sizing. The good news is that identifying the proper size is straightforward when you know what to look for.
The most accurate method is to check the existing belt for printed markings. Most belts have a standardized code such as “B85” or “5M1200,” where the letter (or number and letter) indicates the belt type and the number represents the effective length in inches or millimeters. If the belt is unmarked, you can measure the pitch length by placing a tape measure in the pulley groove under light tension.

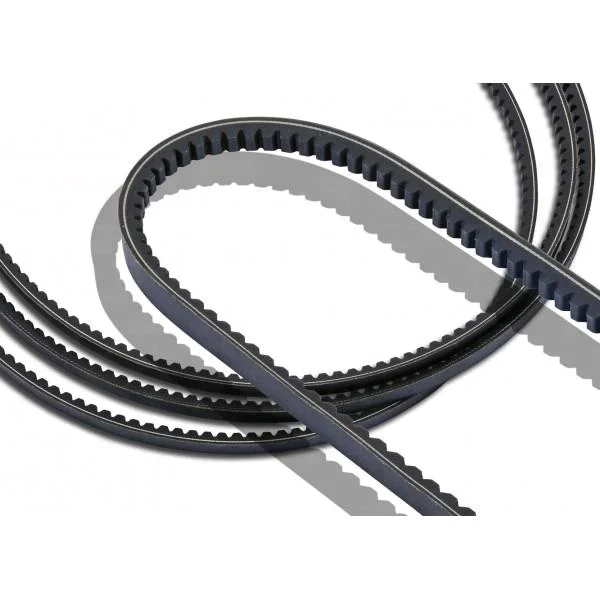

At Hipower, we’ve simplified this process with our precision-engineered belts that feature laser-etched, easy-to-read part numbers. Our V Belt sizing system ensures compatibility across industrial applications while delivering superior performance.
For quick reference, here are the key dimensions for Hipower’s classical wedge belt series:
| Belt Type | Top Width (inches) | Height (inches) | Angle (degrees) |
|---|---|---|---|
| A | 1/2 | 11/32 | 40 |
| B | 21/32 | 13/32 | 40 |
| C | 7/8 | 17/32 | 40 |
| D | 1 1/4 | 3/4 | 40 |
| E | 1 1/2 | 29/32 | 40 |
FAQ
What if my old belt has stretched and no longer fits properly
A worn V Belt will indeed stretch and lose its original specifications. Instead of matching the stretched length, refer to machinery manuals or use Hipower's online sizing guide to find the OEM-recommended size. Our belts are manufactured with advanced EPDM compounds that resist stretching and maintain tension longer.
Can I use a different type of belt if the exact size isn't available
We strongly recommend against substitution. Using an incorrect belt type – even if the length seems close – can cause slippage, reduced efficiency, and premature failure. Hipower produces comprehensive size ranges to ensure you get the exact V Belt your equipment requires.
How often should I check and replace my V belts
Regular inspection every 3-6 months is recommended for most applications. Look for cracks, glazing, or wear. Hipower belts are engineered for extended service life, but replacement should occur when signs of wear appear or according to manufacturer maintenance schedules.
Still unsure about your V Belt size requirements? Our technical specialists at Hipower are ready to assist you with expert guidance and precision products. Contact us today for personalized support and ensure your machinery operates at peak performance with the perfect belt match.
