What is the optimal brake drum size for braked torsion axles on dual axle trailers
2026-05-20

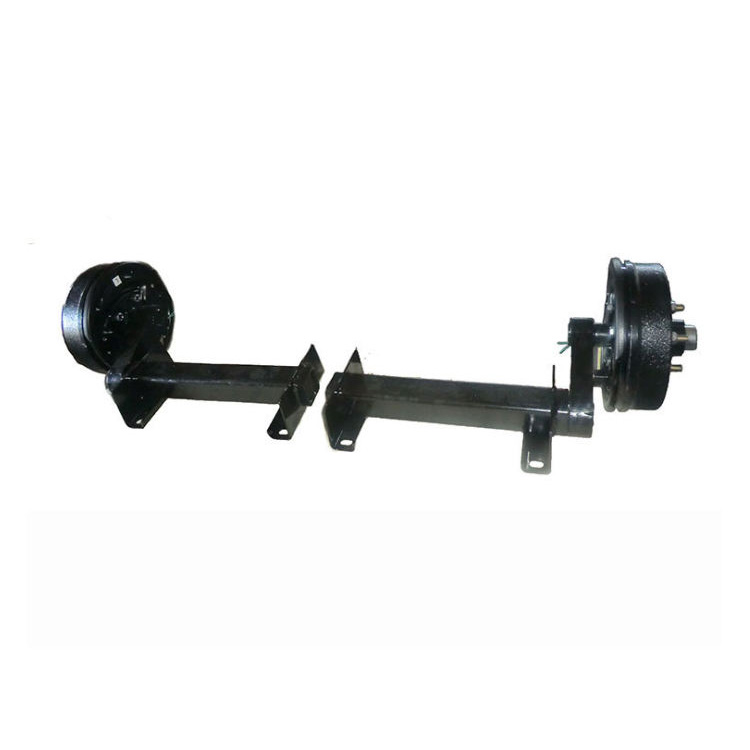

Selecting the correct brake drum size for Braked Torsion Axles for Trailers is critical for safety, load management, and longevity. For dual axle configurations, the axle pair shares braking and suspension duties, making drum sizing more complex than on single axle units. Fumin has engineered a range of Braked Torsion Axles for Trailers that perform best when paired with precisely matched brake drums. This guide explains how to determine the optimal drum size for your dual axle trailer.
Why Drum Size Matters on Dual Axle Trailers
Dual axles increase gross trailer weight (GTW) and require balanced braking across both axles. An undersized drum leads to premature brake fade, overheating, and uneven tire wear. An oversized drum adds unsprung mass, degrading torsion arm response. The optimal drum size balances thermal capacity, stopping force, and weight distribution.
Optimal Brake Drum Sizes by Trailer Load
| Gross Trailer Weight (lbs) | Recommended Drum Diameter (inches) | Drum Width (inches) | Typical Application |
|---|---|---|---|
| 3,500 – 5,000 | 10 | 2.25 | Small utility and landscaping trailers |
| 5,100 – 7,000 | 10 or 12 | 2.25 – 3.00 | Boat and car haulers |
| 7,100 – 10,000 | 12 | 3.00 | Heavy equipment and cargo trailers |
| 10,000 – 14,000 | 12 or 14 | 3.00 – 3.50 | Commercial dual axle trailers |
For most dual axle trailers in the 7,000–10,000 lb range, a 12 x 3.00 inch brake drum is the optimal choice for Fumin Braked Torsion Axles for Trailers. This size provides sufficient heat dissipation during repeated stops without overloading the torsion arms.
Performance Comparison of Drum Sizes on Dual Axle Torsion Systems
| Drum Size | Heat Dissipation | Stopping Distance (60-0 mph, loaded) | Unsprung Mass Impact | Recommended Hub Type |
|---|---|---|---|---|
| 10 x 2.25 | Moderate | 145 ft | Low | EZ Lube |
| 12 x 3.00 | High | 128 ft | Moderate | Oil bath or EZ Lube |
| 14 x 3.50 | Very high | 119 ft | High | Electric over hydraulic |
FAQ – Braked Torsion Axles for Trailers
Question 1: Can I use different brake drum sizes on the front and rear axles of a dual axle trailer with braked torsion axles
Answer: No, using mismatched drum sizes on a dual axle trailer equipped with Braked Torsion Axles for Trailers is unsafe. Different drum diameters generate unequal braking torque, causing one axle to lock or drag while the other provides insufficient braking. This leads to trailer sway, increased stopping distance, and accelerated tire wear. Always install identical drum sizes on both axles. Fumin offers matched drum sets specifically calibrated for dual axle torsion systems.
Question 2: How does brake drum size affect the torsion arm response on braked torsion axles for trailers
Answer: Larger drums add weight to the rotating and unsprung mass directly attached to the torsion arm. On a Braked Torsion Axle for Trailers, the rubber cord or torsion bar is tuned for a specific wheel end mass. Increasing drum size beyond the axle rating slows torsion arm return speed, reducing suspension compliance over bumps. Conversely, a correctly sized drum (e.g., 12-inch for 8,000 lb dual axle) allows full torsion articulation while maintaining stable braking. Fumin engineers each Braked Torsion Axle for Trailers with a recommended drum size range printed on the axle certification label.
Question 3: Do electric or hydraulic brakes on braked torsion axles for trailers require different optimal drum sizes
Electric brakes generate more heat per stop than hydraulic surge brakes under heavy loads. For Braked Torsion Axles for Trailers equipped with electric brakes on dual axle trailers, choose a drum one inch larger than the hydraulic recommendation. Example: a 7,500 lb trailer with electric brakes needs 12 x 3.00 inch drums, while hydraulic brakes can safely use 10 x 2.25 inch drums on the same axle. Hydraulic brakes benefit from narrower drums (2.25 inches) because they apply more linear force. Electric systems require wider drums (3.00 inches) for adequate friction surface. Fumin builds both electric and hydraulic-ready hubs for their Braked Torsion Axles for Trailers, with drum size clearly marked on each assembly.
Final Selection Checklist
-
Verify the trailer’s certified GTW plate.
-
Choose drum diameter based on the 7,000–10,000 lb row in the table above for common dual axle trailers.
-
Match drum width to brake type: 2.25 inches for hydraulic, 3.00 inches for electric.
-
Confirm that both axles receive identical drum assemblies.
-
Select Fumin pre-assembled drum and hub kits for direct fitment on their Braked Torsion Axles for Trailers.
Contact Us
Choosing the right brake drum size for your dual axle trailer ensures reliable stops and extends the life of your Braked Torsion Axles for Trailers. Fumin provides technical data sheets, load-specific recommendations, and complete drum-axle kits. For a customized recommendation based on your trailer’s weight, brake type, and usage conditions, contact our engineering support team today with your trailer specifications.
