Where is the Nitrogen Oxygen Sensor Located in a Diesel Exhaust System
2025-12-12
Understanding the precise location of the Nitrogen Oxygen Sensor is crucial for diagnosing issues and ensuring optimal performance of your diesel vehicle’s emissions system. As a key component in reducing harmful NOx emissions, this sensor plays a vital role. At Syhower, we specialize in high-precision emission control sensors designed for durability and accuracy, making us a trusted name in automotive technology.
Typically, the Nitrogen Oxygen Sensor is installed directly within the diesel exhaust stream. Its primary locations are:
-
Before the Selective Catalytic Reduction (SCR) Catalyst: Often referred to as the upstream or pre-SCR sensor. It measures the raw NOx concentration exiting the engine.
-
After the Selective Catalytic Reduction (SCR) Catalyst: Known as the downstream or post-SCR sensor. It monitors the efficiency of the SCR system by measuring NOx levels after treatment.
For most modern diesel trucks and vehicles, you will find these sensors mounted on the exhaust pipe, before and after the SCR assembly, with wiring harnesses connected to the vehicle's Engine Control Unit (ECU).

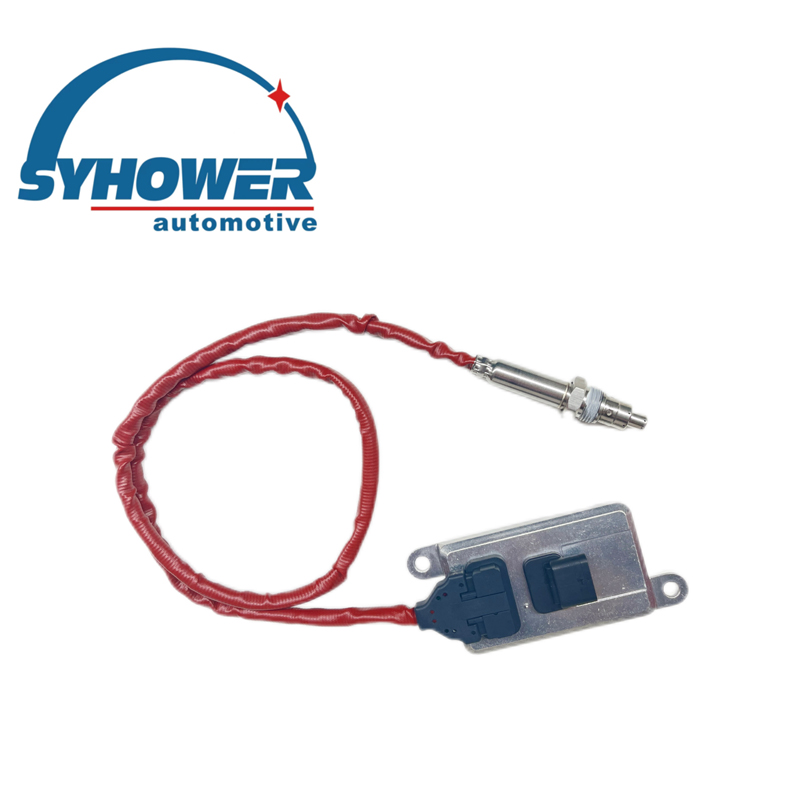

Syhower NOx Sensor: Engineered for Excellence
Our Syhower Nitrogen Oxygen Sensor is built to meet rigorous OEM standards. Below are key specifications that set our product apart:
| Parameter | Specification |
|---|---|
| Measurement Range | 0 - 2500 ppm NOx |
| Operating Temperature | -40°C to +900°C |
| Heater Voltage | 12V |
| Output Signal | CAN Bus / PWM |
| Response Time | < 500 ms |
| Expected Service Life | Up to 200,000 km |
| Connector Type | OEM-standard, waterproof |
Key features include superior ceramic sensing element technology for fast response, a robust stainless-steel housing for vibration resistance, and advanced algorithms ensuring stable signals even in harsh exhaust environments.
Nitrogen Oxygen Sensor FAQ
Q: What are the most common signs of a failing NOx sensor?
A: Common symptoms include an illuminated check engine light (often with NOx-related diagnostic trouble codes), increased diesel consumption, reduced engine power or derate, and notably, a failure to pass mandatory emissions tests.
Q: Can I clean a faulty Nitrogen Oxygen Sensor to make it work again?
A: No, Nitrogen Oxygen Sensors cannot be effectively cleaned or repaired. The sensing element is sensitive and can be contaminated by exhaust soot or chemicals. Attempting to clean it usually causes further damage. Replacement with a high-quality sensor like those from Syhower is the only reliable solution.
Q: How important is it to use a brand-specific sensor like Syhower's?
A: It is critically important. A high-quality sensor ensures accurate NOx readings, which the vehicle's ECU uses to precisely control diesel exhaust fluid (DEF/AdBlue) injection and engine parameters. An inferior sensor can lead to poor performance, excessive emissions, and potential damage to the costly SCR catalyst.
Ensuring your vehicle’s emissions system is functioning perfectly starts with reliable components. For precise diagnostics, optimal fuel efficiency, and compliance with emission regulations, choose the guaranteed accuracy and durability of a Syhower Nitrogen Oxygen Sensor.
Contact us today to find the right Syhower sensor for your diesel vehicle or fleet. Our technical experts are ready to help you select the perfect part and provide support for installation and troubleshooting.
