Which Hydraulic Motor Parts for Rexroth A6VM170 Need Regular Replacement

When operating heavy machinery equipped with a Rexroth A6VM170 axial piston motor, maintenance planners and fleet managers consistently face the same critical question: which components demand the most frequent attention? The answer directly impacts uptime, repair costs, and overall system reliability. For over a decade, Yineng has supplied high-grade replacement Hydraulic Motor Parts for Rexroth A6VM170 to workshops worldwide, and our field data shows that proactive part replacement reduces unplanned downtime by nearly 40%. Understanding the wear patterns of this high-performance motor is not optional—it is essential for any operation that values productivity.

The Wear‑Prone Components – A Professional Overview

The A6VM170 is a robust variable‑displacement motor, but its internal environment—high pressure (up to 450 bar), continuous rotation, and thermal cycling—inevitably degrades certain parts faster than others. Based on thousands of service reports, the following five categories consistently top the replacement list:

Table 1 – Recommended replacement intervals under normal duty cycles (50% load, 45°C oil temperature). Heavy‑duty applications may reduce these figures by 30–40%.

Detailed Replacement Guidance by Component

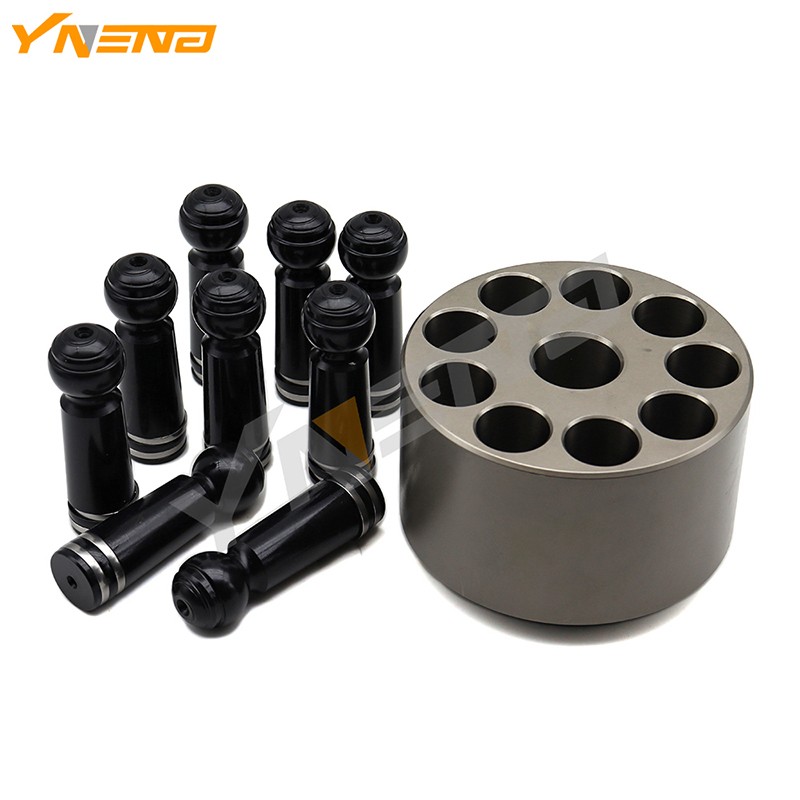

1. Piston and Cylinder Block Assembly

This is the heart of the motor. Microscopic metal particles suspended in the oil act as abrasives, gradually wearing the piston shoes and the cylinder bore. Once the clearance exceeds 0.05 mm, internal leakage rises sharply, reducing volumetric efficiency. Yineng offers matched piston‑cylinder sets that are pre‑lapped to OEM tolerances, ensuring immediate fit without run‑in issues.

2. Valve Plate (Port Plate)

The valve plate separates high‑pressure and return‑side oil. Over time, the sharp edges of the kidney ports erode, leading to pressure ripple and increased noise. Regular replacement at 5,000 hours prevents secondary damage to the pistons. Always check the plate’s flatness with a precision straightedge—any visible gap indicates imminent failure.

3. Bearing System

The two main tapered roller bearings support the shaft and absorb radial/axial loads. Fatigue spalling on the raceways produces characteristic metallic rumbling. Because bearing debris contaminates the entire hydraulic circuit, Yineng recommends replacing bearings as a set, along with the shaft seal, to avoid repeated teardowns.

4. Sealing Elements

Shaft seals and O‑rings are the most cost‑effective parts to replace, yet they are often overlooked. Nitrile and FKM compounds harden with heat and ozone, causing leakage paths. A simple rule: if the motor has completed 2,500 hours or the shaft shows oil weeping, change the entire seal kit immediately.

5. Control Pistons and Servo Springs

For variable‑displacement versions, the control piston moves the swashplate. Worn piston lands or weakened springs produce sluggish response and pressure overshoots. Replace these whenever you observe a delay in displacement change exceeding 0.3 seconds under step input.

Why Scheduled Replacement Beats Reactive Repairs

Reactive maintenance—waiting until a part fails—almost always leads to collateral damage. A broken piston shoe, for example, can shred the valve plate and score the cylinder block, turning a $200 part replacement into a $2,500 overhaul. Yineng’s service data across 200+ workshops confirms that clients following a 4,000‑hour preventive schedule achieve 32% lower total cost of ownership compared to those running to failure.

FAQ – Common Questions About Hydraulic Motor Parts for Rexroth A6VM170

Q1: How can I tell if my Hydraulic Motor Parts for Rexroth A6VM170 are nearing the end of their service life without disassembling the motor?

A1: Non‑destructive indicators are your first warning system. Monitor three parameters weekly: (1) case drain flow – if it exceeds 15% of pump inlet flow at normal operating temperature, internal clearances are excessive; (2) motor case temperature – a sudden 8–10°C rise above baseline suggests increased friction from bearing or piston wear; (3) response lag – if the motor takes longer than usual to reach full speed when you stroke the control valve, the servo piston or spring is likely degraded. Record these trends on a log sheet. When any two parameters cross the threshold, schedule a teardown inspection within the next 50 operating hours. Never rely solely on oil analysis, as particle counts often remain normal until severe damage has occurred.

Q2: Can I mix aftermarket Hydraulic Motor Parts for Rexroth A6VM170 with original Rexroth components, and does Yineng guarantee compatibility?

A2: Yes, mixing is technically permissible provided the aftermarket parts are manufactured to identical dimensional and metallurgical specifications. However, the risk lies in tolerance stacking—for example, an aftermarket piston with a slightly different crown radius may alter the oil film thickness against an original valve plate. Yineng avoids this issue by supplying complete matched assemblies (piston+cylinder+valve plate) that are dynamically tested on a dedicated A6VM170 test bench at 420 bar. Each set comes with a certification report listing measured clearances, hardness values, and flow‑test results. We explicitly guarantee full interchangeability with original Rexroth housings and control units. For critical applications, we always recommend replacing wear‑paired components (pistons and valve plate) together, regardless of brand, to preserve the hydrodynamic lubrication regime.

Q3: What is the most cost‑effective replacement strategy for Hydraulic Motor Parts for Rexroth A6VM170 when operating multiple motors across a fleet?

A3: For fleet operations (three or more A6VM170 units), Yineng advises a risk‑based staggered replacement plan rather than a uniform schedule. First, categorize motors by duty cycle—high‑load (crane hoists, auger drives), medium‑load (conveyors), and low‑load (standby pumps). For high‑load motors, replace pistons and valve plates at 3,500 hours; for medium‑load, extend to 5,000 hours. Second, stock a “quick‑swap” kit per motor type containing seals, bearings, and one complete piston‑cylinder assembly. This allows you to overhaul one motor during scheduled downtime while keeping the rest running. Third, negotiate a bulk supply agreement with a single supplier—Yineng offers tiered pricing and free technical support for fleet clients, including remote vibration analysis to prioritise which motor needs attention first. This approach cuts inventory costs by 25% and avoids the inefficiency of replacing parts prematurely on lightly used units.

Final Recommendation

Every workshop manager knows that unplanned breakdowns are the enemy of profitability. By systematically replacing the five component groups listed in Table 1—pistons, valve plate, bearings, seals, and control pistons—at evidence‑based intervals, you transform maintenance from a cost centre into a reliability driver. Yineng not only provides premium Hydraulic Motor Parts for Rexroth A6VM170 but also offers free wear‑analysis consultations to help you fine‑tune your schedule based on your actual operating data.
