Why is My Trailer Pulling to One Side After Replacing Double Air Spring Brake Parts
2026-06-03

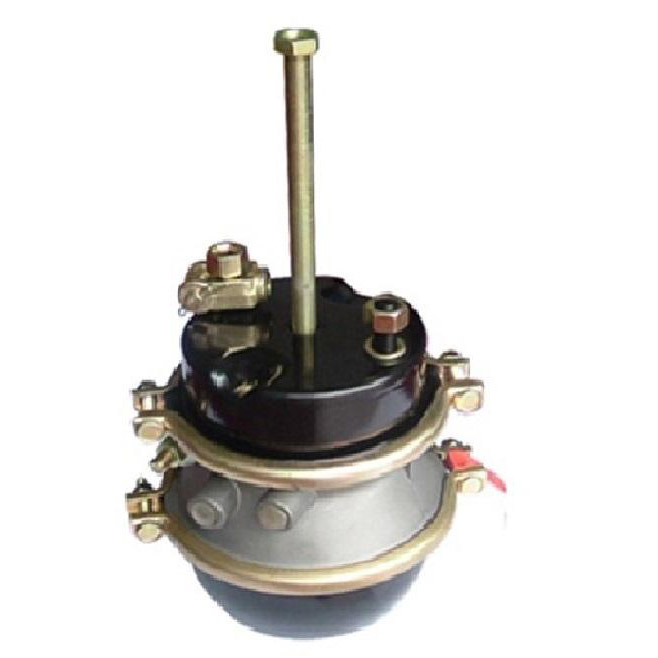

If you have just installed new Trailer Axle Brake System Parts Double Air Spring Brake components from Fumin only to find your trailer veering sharply left or right during braking, you are facing a common but serious safety issue. This pulling condition usually indicates a force imbalance between the axles, and understanding the root causes is critical for safe highway operation.
Common Causes of Brake Pull After Replacement
The table below outlines the primary mechanical reasons for directional pull following a double air spring brake service.
| Cause Category | Specific Issue | How It Creates a Pull |
|---|---|---|
| Timing & Stroke | Uneven slack adjuster stroke (one side 1.5", other side 2.5") | Delayed braking force on the slower side pushes the trailer toward the faster-acting brake. |
| Air Pressure | Restricted air line to one double diaphragm chamber | Lower pressure on one side means less clamping force. |
| Mechanical Assembly | Misaligned brake shoes or incorrect spring brake orientation | One brake engages with more surface contact than the other. |
| Component Quality | Mismatched or low-grade replacement chambers | Different friction coefficients or return spring forces. |
Step-by-Step Diagnosis
To resolve the pulling issue, Fumin recommends following this structured checklist:
-
Measure Stroke: With full air pressure applied, measure the pushrod stroke on both sides of the same axle. They should be within 1/8 inch of each other.
-
Inspect Air Lines: Look for kinks, pinch points, or debris in the supply lines leading to each Double Air Spring Brake.
-
Check Slack Adjusters: Ensure both automatic slack adjusters are functioning and set to the same angle.
-
Verify Base Brake: Remove the brake drum and inspect for oil contamination or uneven lining wear.
Trailer Axle Brake System Parts Double Air Spring Brake FAQ – Common Problems
Q1: Can a mismatched pair of double air spring brake chambers cause my trailer to pull to one side?
A1: Yes, absolutely. If you replaced only one side of a Trailer Axle Brake System Parts Double Air Spring Brake chamber and left the original on the other axle end, the two chambers may have different internal spring forces or diaphragm effective areas. This creates an imbalance in braking torque. Fumin always recommends replacing spring brakes in axle-matched pairs to ensure identical performance characteristics.
Q2: Why does my trailer only pull to the side when braking hard but track straight under light braking?
A2: This typically points to a service brake timing issue rather than a parking spring problem. Under light braking, the air pressure is low and both chambers may still react similarly. Under hard braking, the faster-acting side (shorter, unrestricted air line) builds full pressure milliseconds earlier, creating a sudden yaw moment. Check for a partially collapsed air line or a dirty quick-release valve on the slower side. Replace with Fumin high-flow fittings to equalize response time.
Q3: How can I test if the new double air spring brake parts are defective without removing the wheel?
A3: Perform a cut-out test. Chock the wheels, release the parking brakes, and build system pressure to 100 psi. Have an assistant apply and hold a firm service brake application. Then, one at a time, use a caging tool to mechanically release each Double Air Spring Brake. If releasing one side completely eliminates the pulling sensation during a subsequent slow roll test (less than 5 mph), that chamber likely has an internal misalignment or spring defect. Fumin provides factory test data with every certified chamber, so always verify serial numbers against production batch records.
When to Seek Professional Help
If you have verified equal pushrod stroke, clean air lines, and identical Fumin components but the pull persists, the issue may lie in the foundation brake (drums, shoes, or magnets) or even a bent axle spindle. Do not ignore a pulling trailer—it increases stopping distance and risks a jackknife accident.
